Products

The Huntron Workstation software is designed to bring a high level of efficiency and flexibility to almost any circuit card test application.

• Fast, easy and repeatable tests
• Quick viewing of component signatures, numeric measurements, waveforms and images
• Leverage CAD tools that assist you in test development and troubleshooting
• Precision control of Prober movement and camera functions
• Embedded control of conventional test instruments such as multimeters, oscilloscopes…
• Simplified Tester interface for production level operation

Adding power-off diagnostics can detect and isolate component faults on boards beyond power-on functional testing.

• Complement conventional test instruments in the debug and troubleshooting process
• Eliminates the risk of further circuit that can occur when power is applied
• Use standalone or with Huntron Workstation software

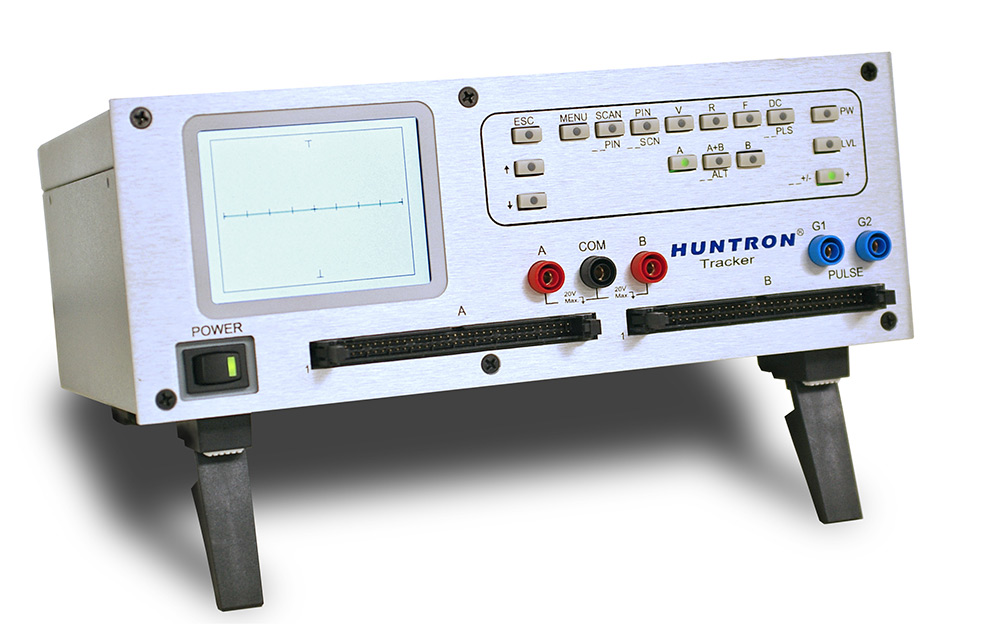

Huntron Trackers are suited for today’s mixed signal circuit cards where Analog and Digital are mixed together.

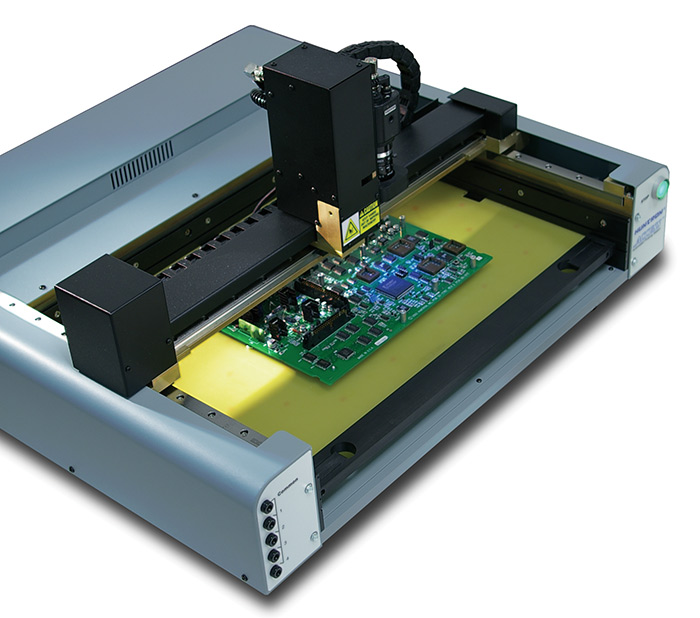

A Huntron Access Prober is used to automate the testing of printed circuit assemblies (PCA) that would otherwise be difficult to test by hand

• Significantly decrease test times and increase productivity
• Reliably probe the smallest surface mounted components with
• exceptional accuracy achieved by micro-stepping and linear encoding
• Select from single or dual head systems
• Uses off the shelf standard, spring loaded test probes

The Huntron Access Probers add flying probe technology to your new or existing equipment.

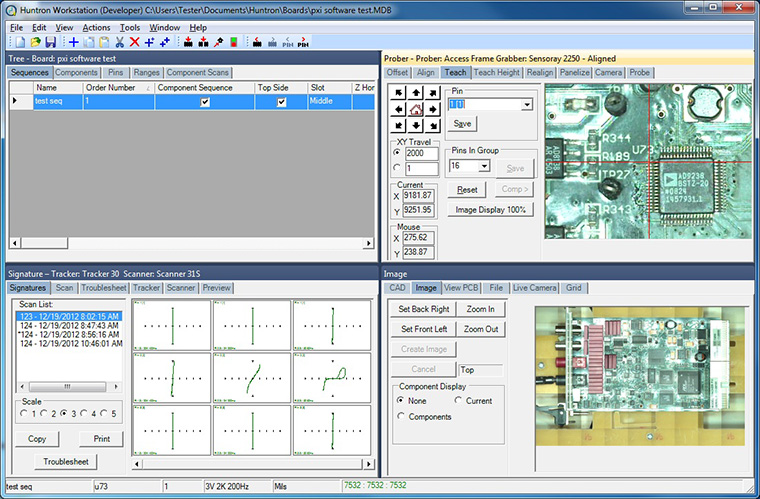

The Huntron Workstation software can move the prober to a location, control the instrument, display data, make comparisons of numeric measurements, waveforms and images.

• Take advantage of 20 micron accuracy to reliably test the smallest surface mounted components
• Configure the probe to suit your needs such as multiple pin arrays, guided test probe or application specific custom test head
• Utilize CTOS building blocks such as Remote Control, SDKs, CAD Viewers and conventional test instruments

Huntron provides hardware and software building blocks for accurate, repeatable and reliable automation.

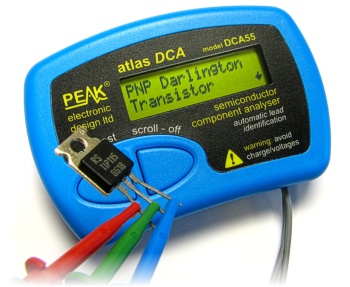

Just connect your component any way round and press the test button. The Atlas DCA will then present you with detailed component information in concise, easy to read, scrollable pages. The displayed information will include: the component type, special component features, component pinout, and measured parameters (such as gain, leakage current, gate threshold voltages, volt drops etc…). No more searching through data books and catalogues in order to identify components and pinouts.

Features

• Connect your component any way round.
• Automatic part type identification (not the part number).
• Automatic full pinout identification (only gate of JFETs is identified).
• Important parameter measurements including:
  • Current gain measurement (hFE) of BJTs.
  • Base-Emitter voltage drops (Vbe) of BJTs.
  • Leakage current of BJTs.
  • Gate threshold (Vgs) of Enhancement mode MOSFETs.
  • Voltage drops (Vf) of PN junctions, diodes, LEDs etc.
• Distinguishes between germanium and silicon BJTs.
• Long battery life (alkaline battery included).
• Includes high quality gold plated hook probes.
• Includes detailed illustrated user guide.

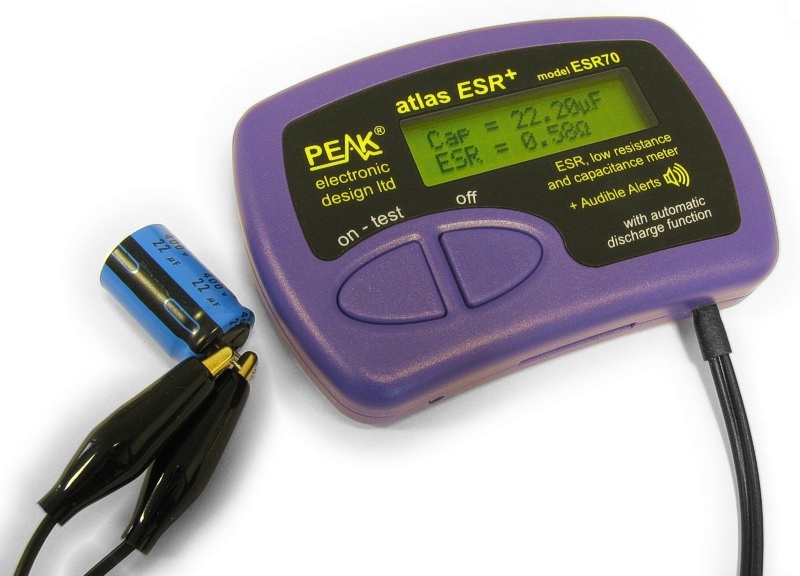

The ESR70 is the ideal tool for checking the condition of your capacitors. Great for repair and renovation work. It will measure both capacitance and ESR (Equivalent Series Resistance) at the same time. You can even measure ESR with the capacitor in-circuit.

Features

• Measure ESR and capacitance.
• Suitable for any capacitor type between 1uF and 22000uF including
• motor capacitors, smoothing capacitors, electrolytics,
• polypropylenes, in fact any dielectric type.
• Automatic analysis start when applying probes to capacitor.
• New enhanced dynamic range of 0.00 to 40.0 ohms.
• Audible alerts for various ESR levels.
• ESR Resolution as fine as 0.01 ohms (typically 0.02 ohms).
• Supports capacitors from 1uF to 22000uF.
• Capable of In-Circuit measurement of ESR.
• Polarity free, connect any way round.
• Protected against moderately charged capacitors.
• Supplied complete with 2mm male test leads and 2mm compatible gold plated crocs.
• Test leads are ultra-durable and 45cm (18”) long with 2mm plugs.
• Enhanced software compensation of cable resistance.
• Complete with comprehensive user guide.
• Capacitor reference table included.
• Tests ESR at the industry standard 100kHz.
• Capacitance measured using constant current source.
• Long life alkaline battery fitted.
• Auto power-off after 45 seconds if inactivity.
• Just 103mm x 70mm x 20mm (4.1” x 2.8” x 0.8”)

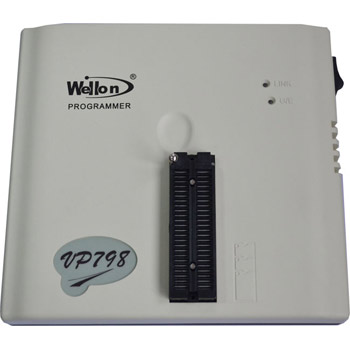

VP-798 Universal Programmer Features

• Dimensions - 168 by 180 by 32mm
• Weight - 450g
• 48 Pin ZIF socket with universal pin-drivers
• USB Interface - Usable with laptops, PC, PS/2 or other compatible platform
• Accepts most compiler outputs in JEDEC format including ABEL, CUPL, PALASM, TANGO PLD, Or CAD PLD, PLD Designer and ISDATA
• Manages 16 and 32-bit word split (Set Programming)
• Loads Microchip Hex Files
• Features Test Vector capability and multiarray fuse map editor
• Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices
• Optimum programming for each individual device
• Auto identifies TTL/CMOS logic IC
• Automatically identifies the manufacturer and type of E(E)PROMs
• Supports 1.5v low voltage devices
• Device insertion and poor-pin-contact check
• Adapters are not needed for DIL devices
• Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters available
• Auto-run mode starts programming automatically on detection of chip insertion
• Fast programming speed
• Supports IC Card programming
• Supports Windows XP, Vista, 7, 8 & 10 (32-bit & 64-bit)
• Power supply included

The software is very comprehensive, with lots of features that make it ideal for both production and development

• Device SELECT includes package information, adapter type, part number description etc.
• LOAD file supports checksums, comprehensive file formats and address location
• Flexible Verify options, including VCC+/-10%
• Blank check, Erase, Program, verify, Auto Program, buffer edit and much more
• Serial numbers and statistics

VP-798 Package List

• VP-798 48-pin Universal Programmer
• USB cable
• Power supply unit
• Software CD
